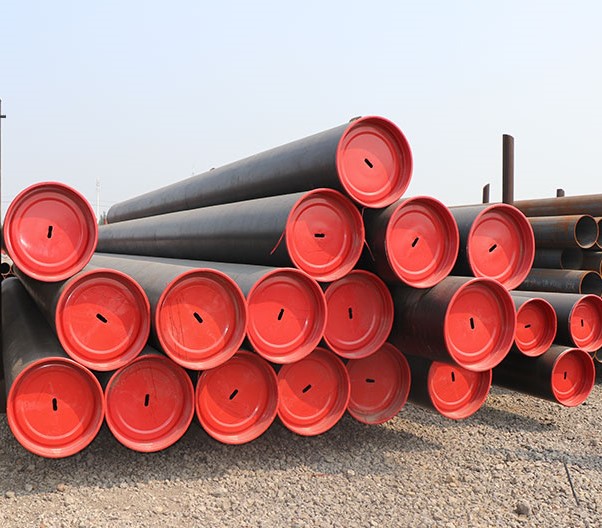

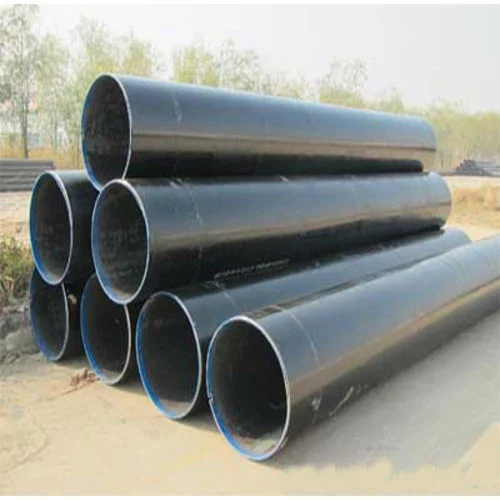

API 5L X52 / L360 SEAMLESS & WELDED
LINE PIPE SUPPLIER
Multi Metals (India) specializes in API 5L X52 PSL1 & PSL2 Pipes certified and tested in accordance with ISO 3183, ISO 15156, NACE MRO175 / 103, HIC, SWC, SSC, SSCC, SOUR SERVICE, H2 SERVICE, IMPACT, POST WELD HEAT TREATMENT (PWHT), IBR, HIGH YIELD, IPS-M-PI-190, IPS-M-PI-221 ETC.
Multi Metals (India) is India's largest exporter of X52 or L360 PSL1/PSL2 (N, M, Q, R) Line Pipe
We Supply X52 / L360 Steel Line Pipe in Diameter 1/2” to 100” & Pipe wall thickness Schedule 10, SCH 40/ 80 & SCH 160. We Stock API 5L X52 material in Seamless and Welded (ERW, HFW, LSAW) in both PSL1 & PSL2.
We solicit contacts from reputed Pipe mills to represent them & stock their products for resale to EPC Companies / Promoting Companies.
High Yield API 5L X52 / L360 Seamless & Welded Carbon Steel Pipe Manufacturer
Stockist, Exporter of API 5L X52 / L360 Seamless & Welded Line Pipe – PSL1 & PSL2
API 5L Grade X52 / L360 ERW & LSAW Pipe FOR SALE AT BEST PRICE IN INDIA
Table of Contents :-
API 5L X52 / L360 Line Pipe Specification :-
API 5L X52 Pipe also called L360 pipe (by ISO 3183), named by minimum yield strength 52200 Psi or 360 Mpa. It’s a medium grade in API 5L and ISO 3183 specifications, used for oil and gas pipeline transmissions. X52 performance is better than Grade X46, X42, and Grade B. It is a second big requirements in oil and gas pipe systems. API 5L X52 Pipes are produced into seamless pipe and welded steel pipe with Spiral Submerged Arc Welding Pipe (SSAW), Longitudinal Seam Submerged Arc Welding Pipe (LSAW), Electric Resistance Welding (ERW).
- API 5L X52 / L360 Line Pipes ranges in PSL1, PSL2, onshore/offshore, and sour service.
- API 5L X52 PSL1 is for common use material delivery conditions R as Rolled.
- API 5L X52 PSL2 is strict and higher than PSL1 on chemicals, mechanical properties and test requirements.
- PSL2 specified with suffix letter N, Q, M, eg API 5L X52Q/M/N (Where sour services is described as API 5L X52QS/MS)
Suffix Letter Means :-
- R: As rolled
- N: Normalizing rolled, Normalized formed, Normalized
- Q: Quenched & Tempered
- M: Thermomechanical rolled or Thermomechanical formed
- S: Sour Service Use
View here differences between PSL1 and PSL2.
View API 5L Pipe Specification (46th Edition Updated on 2020)
SUPPLY RANGE :-
|
API 5L X52 Pipe Standard
|
: |
API 5L X52/L360 (Q, M, N, QS, MS), ISO 3183 L320 (API specification 5L - 46th Edition, November 1, 2018)
|
|
API 5L X52 Pipe Product
Specification Level
|
: |
PSL1, PSL2, NACE,
Sour Service, HIC, SSC, H2 Service
|
|
API 5L X52 Pipe
Types
|
: |
Seamless and Welded in ERW, LSAW, DSAW, SSAW (HSAW)
.
|
|
API 5L X52 Pipe OD
Range (Seamless)
|
: |
1/2” – 30” (21.3 mm
– 762 mm)
|
|
API 5L X52 Pipe OD
Range (ERW)
|
: |
1/2” – 20” (21.3mm
– 508mm)
|
|
API 5L X52 Pipe OD
Range (LSAW/DSAW)
|
: |
16” – 100” (406mm –
2500MM)
|
|
API 5L X52 Pipe OD Range (SSAW/HSAW)
|
: |
up to 100” (2500mm)
|
|
API 5L X52 Pipe Wall Thickness / Schedule
|
: |
SCH-20, SCH-40, SCH-STD, SCH-XS, SCH-80, SCH-100, SCH-120, SCH-160, SCH-XXS, HEAVY THICKNESS
|
|
API 5L X52 Pipe Pipe Length
|
: |
SRL (Single Random
Length), DRL (Double Random Length), 20Ft (6Mtr), 40Ft (12Mtr),
Cut Length
|
|
API 5L X52 Pipe Pipe Ends
|
: |
Plain, Bevel,
Screwed, Threaded
|
|
API 5L X52 Pipe Coating
Finish Types
|
: |
Bare, Oiled, Mill
Varnish, Galvanized, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating
and Tape Wrap End
|
|
API 5L X52 Pipe
Packing
|
: |
Steel Bundle,
Plastic Caps on both ends, Woven bag, Wooden Box or as per clients’ needs
|
|
API 5L X52 Pipe Origin
|
:
|
Indian Origin,
Japanese Origin, Korean Origin, European Origin, US Origin, Ukraine Origin,
Russian Origin
|
API 5L X52 Steel Pipe Price List:-
|
API 5L X52 Steel Pipe
Price
|
Origin
|
Price in INR
(INR/Ton)
|
Price in USD(USD/Ton)
|
|
API 5L X52 Steel Pipe
Price in India
|
Indian
|
Rs.88,000 - Rs.98,000
|
$1150 - $1300
|
|
API 5L X52 Steel Pipe
Price in Korea
|
Korean
|
Rs.98,000 - Rs.108,000
|
$1300 - $1450
|
|
API 5L X52 Steel Pipe
Price in Japan
|
Japanese
|
Rs.115,000 - Rs.120,000
|
$1500 - $1600
|
|
API 5L X52 Steel Pipe
Price in Europe
|
European
|
Rs.120,000 - Rs.130,000
|
$1600 - $1700
|
|
API 5L X52 Steel Pipe
Price in USA
|
USA
|
Rs.120,000 - Rs.130,000
|
$1600 - $1700
|
API 5L X52 PSL-1 Pipe Chemical Composition :-
| Steel Grade | Mass fraction, % based on heat and product analyses a,g | ||||||
| C | Mn | P | S | V | Nb | Ti | |
| max b | max b | max | max | max | max | max | |
| Seamless Pipe | |||||||
| X52 / L360 | 0.28 | 1.4 | 0.3 | 0.3 | d | d | d |
| Welded Pipe | |||||||
| X52 / L360 | 0.26 | 1.4 | 0.3 | 0.3 | d | d | d |
API 5L X52 PSL-2 Pipe Chemical Composition :-
| Steel Grade | Mass fraction, % based on heat and product analyses | Carbon Equiv a | |||||||||
| C | Si | Mn | P | S | V | Nb | Ti | Other | CE IIW | CE Pcm | |
| max b | max | max b | max | max | max | max | max | max | max | ||
| Seamless and Welded Pipe | |||||||||||
| X52N / L360N | 0.24 | 0.45 | 1.4 | 0.025 | 0.015 | 0.1 | 0.05 | 0.04 | d,e,l | 0.043 | 0.25 |
| X52Q / L360Q | 0.18 | 0.45 | 1.5 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e,l | 0.043 | 0.25 |
| Welded Pipe | |||||||||||
| X52M / L360M | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | d | d | d | e,l | 0.043 | 0.25 |
API 5L X52 PSL-1 Pipe Mechanical Properties :-
| Pipe Grade | Tensile Properties - Pipe Body of SMLS and Welded Pipes PSL 1 | Seam of Welded Pipe | ||
| Yield Strength a | Tensile Strength a | Elongation | Tensile Strength b | |
| Rt0,5 MPa (psi) Min | Rm MPa (psi) Min | (in 2in Af % min) | Rm MPa (psi) Min | |
| X52 / L360 | 360 (52,200) | 460 (66,700) | c | 460 (66,700) |
API 5L X52 PSL-2 Pipe Mechanical Properties :-
| Pipe Grade | Tensile Properties - Pipe Body of SMLS and Welded Pipes PSL 2 | Seam of Welded Pipe | |||||
| Yield Strength a | Tensile Strength a | Ratio a,c | Elongation (in 2in) | Tensile Strength d | |||
| Rt0,5 MPa (psi) | Rm MPa (psi) | R10,5IRm | Af % | Rm MPa (psi) | |||
| Minimum | Maximum | Minimum | Maximum | Maximum | Minimum | Minimum | |
| X52N / L360N | 360 (52,200) | 530 (76,900) | 460 (66,700) | 760 (110,200) | 0.93 | f | 460 (66,700) |
| X52Q / L360Q | |||||||
| X52M / L360M | |||||||
API 5L X52 Line Pipe Test :-
- Flattening Test
- Hydrostatic Test
- Bend test
- Ultrasonic Test
- CVN impact test for PSL2 pipe (including pipe body tests, pipe weld and HAZ tests for SEAM Pipes)
- DWT test for PSL2 welded pipe
API 5L X52 Steel Pipe Certification and Traceability :-
API 5L X52 Pipes will be supplied with a 3.1/3.2 certificate according to EN 10204, endorsed by recognized and independent inspection agency. Mill TC EN 10204 3.1/3.2, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, , NABL Approved Lab, Chemical and Mechanical Reports.
API 5L X52 Line Pipe Application :-
AAPI 5L X52 high yield carbon steel pipe is commonly known for transporting water, oil, and gas
We can help supply all of the High Yield Seamless API 5L line pipe supplies that your company needs for use in a wide range of industries.
Some of the common industries we serve include:
-
Oil & Gas
-
Chemical
-
Infrastructure
-
Oil and Gas Pipeline
-
Natural Gas
-
Water
-
Fabrication
-
Water and Sewage Pipeline
-
Petroleum
-
Refineries
-
Construction
-
Mineral Slurry Pipeline
