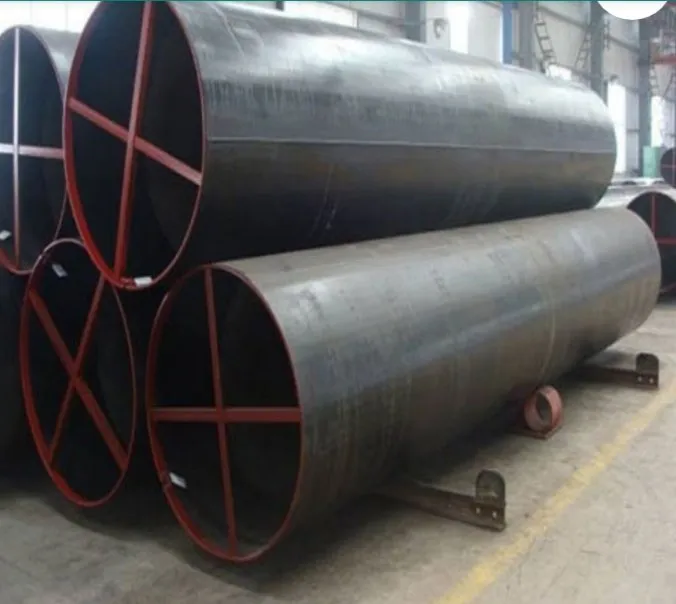

ASTM A671 CARBON STEEL EFW PIPES SUPPLIER
Multi Metals (India) is India's largest exporter of ASTM A671 EFW Pipes in a variety of sizes to meet the project piping requirements for applications in water, petroleum, oil & gas and other industries. We solicit contacts from reputed Pipe mills to represent them & stock their products for resale to EPC Companies / Promoting Companies.
We today stock nearly 8000MT of Carbon Steel ASTM A671 EFW Pipes, that include critical grades A671 CC60, A671 CC65, A671 CC70 in Class 12,22, 32 size ranging from 16" to 100" of different mills which can handle extreme temperatures, pressures and corrosive environment. The various grades and class designations indicates the testing methods required for a given application.
A671 Pipe Supplier | A671 CC60 / CC65 / CC70 CLASS 12, 22, 32
ASME SA671 EFW Pipe Manufacturer in India
ASTM A671 Welded Pipes at Best Price - A671 CC60 Pipes | A671 CC65 Pipes | A671 CC70 Pipe
Table of Contents :-
ASTM A671 EFW Pipe Specification :-
ASTM A671 are all standard Specification for Electric-Fusion-Welded Steel Pipe for Atmospheric and Lower Temperatures. It covers standard requirements for electric-fusion-welded steel pipe with filler metal added, for atmospheric and lower temperatures. ASTM A671M pipes are fabricated from a pressure vessel quality plate of various analysis and strength levels.
ASTM A671 Pipe shall designate the type of plate used while class shall designate the type of heat treatment performed during pipe manufacturing process. These Classes are designated as to whether the weld is radio graphically as well as pressure tested. All Steel specimens made by us undergo tension and transverse guided weld bend tests and conform to the specified mechanical requirements.
SUPPLY RANGE :-
| A671 EFW Pipe Specification | : | ASTM A671 / ASME SA671 |
| A671 EFW Pipe Grade | : | ASTM A671 Grade CB60/CB65/CB70/CC60/CC65 |
| A671 EFW Pipe Types | : | EFW (ELECTRIC FUSION WELDED PIPES) |
| A671 EFW Pipe Class Designation | : | CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42 |
| A671 EFW Pipe OD Range | : | 16" NB To 100" NB (Nominal Bore Size) |
| A671 EFW Pipe Wall Thickness / Schedule | : | SCH-20, SCH-40, SCH-STD, SCH-XS, SCH-80, SCH-100, SCH-120, SCH-160, SCH-XXS, HEAVY THICKNESS |
| A671 EFW Pipe Length | : | SRL (Single Random Length), DRL (Double Random Length), 20Ft (6Mtr), 40Ft (12Mtr), Cut Length |
| A671 EFW Pipe Ends | : | Plain, Bevel, Screwed, Threaded |
| A671 EFW Pipe Additional Testing | : | NACE MR0175, , HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| A671 EFW Pipe Coating Finish Types | : | Bare, Oiled, Mill Varnish, Galvanized, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap End |
| A671 EFW Pipe Packing | : | Steel Bundle, Plastic Caps on both ends, Woven bag, Wooden Box or as per clients’ needs |
| A671 Steel Pipe Origin | : | Indian Origin, Japanese Origin, Korean Origin, European Origin, US Origin, Ukraine Origin, Russian Origin |
| A671 EFW Pipe Test Certificates | : | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Lab Report from NABL Approved Lab. / Third Party Inspection |
ASTM A671 EFW Pipe Price List :-
| ASTM A671 EFW Pipe Price (CC60/CC65/CC70) | Origin | Price in INR(INR/Ton) | Price in USD(USD/Ton) |
| ASTM A671 EFW Pipe Price in India | Indian | Rs.80,000 - Rs.95,000 | $1000 - $1200 |
| ASTM A671 EFW Pipe Price in Korea | Korean | Rs.85,000 - Rs.100,000 | $1050 - $1250 |
| ASTM A671 EFW Pipe Price in Japan | Japanese | Rs.90,000 - Rs.110,000 | $1100 - $1350 |
| ASTM A671 EFW Pipe Price in Europe | European | Rs.105,000 - Rs.125,000 | $1300 - $1550 |
| ASTM A671 EFW Pipe Price in USA | USA | Rs.105,000 - Rs.125,000 | $1300 - $1550 |
ASTM A671 EFW Pipe - Plate Specification
|
Pipe Grade |
Type of Steel |
ASTM Plate Specification |
|
|
No. |
Grade / Class / Type |
||
|
ASTM A671 Grade CB60 |
plain carbon, killed |
A515/A515M |
Gr 60 |
|
ASTM A671 Grade CC60 |
plain carbon, killed, fine grain |
A516/A516M |
Gr 60 |
|
ASTM A671 Grade CB65 |
plain carbon, killed |
A515/A515M |
Gr 65 |
|
ASTM A671 Grade CC65 |
plain carbon, killed, fine grain |
A516/A516M |
Gr 65 |
|
ASTM A671 Grade CB70 |
plain carbon, killed |
A515/A515M |
Gr 70 |
|
ASTM A671 Grade CC70 |
plain carbon, killed, fine grain |
A516/A516M |
Gr 70 |
ASTM A671 EFW PIPE Chemical Composition :-
|
Specification |
Steel Grade |
Chemical Composition % |
|||||
|
C (max) |
Si |
Mn (max) |
P (max) |
S (max) |
Ti (max) |
||
|
Pipes for pressure service ASTM A671 |
CB60 |
0.24 |
0.13~0.45 |
0.98 |
0.035 |
0.035 |
- |
|
CB65 |
0.28 |
0.13~0.45 |
0.98 |
0.035 |
0.035 |
- |
|
|
CB70 |
0.31 |
0.13~0.45 |
1.30 |
0.035 |
0.035 |
- |
|
|
CC60 |
0.21 |
0.13~0.45 |
0.55~0.98 |
0.035 |
0.035 |
- |
|
|
CC65 |
0.24 |
0.13~0.45 |
0.79~1.30 |
0.035 |
0.035 |
- |
|
|
CC70 |
0.27 |
0.13~0.45 |
0.79~1.30 |
0.035 |
0.035 |
- |
|
ASTM A671 EFW PIPE Mechanical Properties :-
|
Products |
Steel Grade |
Base Metal Mechanical Composition |
Welding Point Tensile Strength (N/mm2) |
Remarks |
|||
|
Yield point (N/mm2) (min) |
Tensile Strength (N/mm2) |
Test Pieces |
Elongation (%) (min) |
||||
|
Pipes for pressure service ASTM A671 |
CB60 |
220 |
415~550 |
|
25 |
415~550 |
|
|
CB65 |
240 |
450~585 |
23 |
450~585 |
|||
|
CB70 |
260 |
485~620 |
21 |
485~620 |
|||
|
CC60 |
220 |
415~550 |
25 |
415~550 |
|||
|
CC65 |
240 |
450~585 |
23 |
450~585 |
|||
|
CC70 |
260 |
485~620 |
21 |
485~620 |
|||
ASTM A671 EFW Pipe Heat Treatment Parameter :-
|
Pipe Grade |
ASTM Specification and Grade |
Post-Weld Heat-Treatment |
Normalizing |
Quenching |
Tempering Temperature min, °F(°C) |
|
ASTM A671 |
|||||
|
CB 60 |
A 515/A 515M (60) |
1100-1250 (590-680) |
1750 (950) |
- |
- |
|
CB 65 |
A 515/A 515M (65) |
1100-1250 (590-680) |
1750 (950) |
- |
- |
|
CB 70 |
A 515/A 515M (70) |
1100-1250 (590-680) |
1750 (950) |
- |
- |
|
CC 60 |
A 516/A 516M (60) |
1100-1250 (590-680) |
1750 (925) |
1650 (900) |
1200 (650) |
|
CC 65 |
A 516/A 516M (65) |
1100-1250 (590-680) |
1750 (925) |
1650 (900) |
1200 (650) |
|
CC 70 |
A 516/A 516M (70) |
1100-1250 (590-680) |
1750 (925) |
1650 (900) |
1200 (650) |
ASTM A671 EFW Pipe Certification and Traceability :-
ASTM A671 EFW Pipes will be supplied with a 3.1/3.2 certificate according to EN 10204, endorsed by recognized and independent inspection agency. Mill TC EN 10204 3.1/3.2, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, , NABL Approved Lab, Chemical and Mechanical Reports.
ASTM A671 EFW Pipe Application :-
ASTM A671 EFW Pipe is commonly known for Atmospheric and Lower Temperatures Service requirements.
We can help supply all of ASTM A671 EFW Pipe supplies that your company needs for use in a wide range of industries.
Some of the common industries we serve include:
-
Oil & Gas
-
Chemical
-
Infrastructure
-
Oil and Gas Pipeline
-
Natural Gas
-
Water
-
Fabrication
-
Water and Sewage Pipeline
-
Petroleum
-
Refineries
-
Construction
-
Mineral Slurry Pipeline
