API 5L X56 / L390 SEAMLESS & WELDED
LINE PIPE SUPPLIER
Multi Metals (India) specializes in API 5L X56 PSL1 & PSL2 Pipes certified and tested in accordance with ISO 3183, ISO 15156, NACE MRO175 / 103, HIC, SWC, SSC, SSCC, SOUR SERVICE, H2 SERVICE, IMPACT, POST WELD HEAT TREATMENT (PWHT), IBR, HIGH YIELD, IPS-M-PI-190, IPS-M-PI-221 ETC.
Multi Metals (India) is India's largest exporter of X56 or L390 PSL1/PSL2 (N, M, Q, R) Line Pipe
We Supply X56 / L390 Steel Line Pipe in Diameter 1/2” to 100” & Pipe wall thickness Schedule 10, SCH 40/ 80 & SCH 160. We Stock API 5L X56 material in Seamless and Welded (ERW, HFW, LSAW) in both PSL1 & PSL2.
We solicit contacts from reputed Pipe mills to represent them & stock their products for resale to EPC Companies / Promoting Companies.
High Yield API 5L X56 / L390 Seamless & Welded Carbon Steel Pipe Manufacturer
Stockist, Exporter of API 5L X56 / L390 Seamless & Welded Line Pipe – PSL1 & PSL2
API 5L Grade X56 / L390 ERW & LSAW Pipe FOR SALE AT BEST PRICE IN INDIA
Table of Contents :-
API 5L X56 / L390 Line Pipe Specification :-

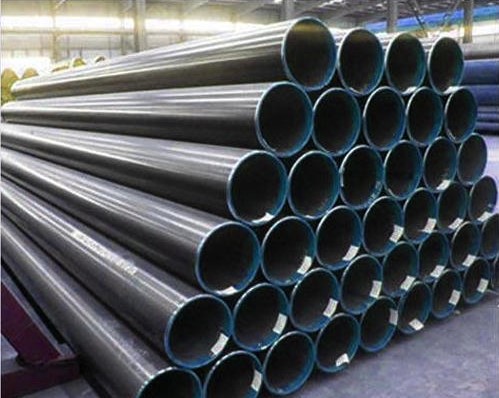

API 5L X56 Pipe also called L390 pipe (by ISO 3183), named by minimum yield strength 56,600 Psi or 390 Mpa. It’s a higher grade than Grade B where API 5L has various grades up to X100, so X56 pipe is an medium level, and it requires large quantities in most of pipelines for oil and gas transmissions. API 5L X56 Pipes are produced into seamless pipe and welded steel pipe with Spiral Submerged Arc Welding Pipe (SSAW), Longitudinal Seam Submerged Arc Welding Pipe (LSAW), Electric Resistance Welding (ERW).
- API X56 / L390 Line Pipes ranges in PSL1, PSL2, onshore/offshore, and sour service.
- API 5L X56 PSL1 is for common use material delivery conditions R as Rolled.
- API 5L X56 PSL2 is strict and higher than PSL1 on chemicals, mechanical properties and test requirements.
- PSL2 specified with suffix letter N, Q, M, eg API 5L X56Q/M/N (Where sour services is described as API 5L X56QS/MS)
Suffix Letter Means :-
- R: As rolled
- N: Normalizing rolled, Normalized formed, Normalized
- Q: Quenched & Tempered
- M: Thermomechanical rolled or Thermomechanical formed
- S: Sour Service Use
View here differences between PSL1 and PSL2.
View API 5L Pipe Specification (46th Edition Updated on 2020)
SUPPLY RANGE :-
|
API 5L X56 Pipe Standard
|
: |
API 5L X56 / L390 (Q, M, N, QS, MS), ISO 3183 L320 (API specification 5L - 46th Edition, November 1, 2018)
|
|
API 5L X56 Pipe Product
Specification Level
|
: |
PSL1, PSL2, NACE,
Sour Service, HIC, SSC, H2 Service
|
|
API 5L X56 Pipe
Types
|
: |
Seamless and Welded in ERW, LSAW, DSAW, SSAW (HSAW)
.
|
|
API 5L X56 Pipe OD
Range (Seamless)
|
: |
1/2” – 30” (21.3 mm
– 762 mm)
|
|
API 5L X56 Pipe OD
Range (ERW)
|
: |
1/2” – 20” (21.3mm
– 508mm)
|
|
API 5L X56 Pipe OD
Range (LSAW/DSAW)
|
: |
16” – 100” (406mm –
2500MM)
|
|
API 5L X56 Pipe OD Range (SSAW/HSAW)
|
: |
up to 100” (2500mm)
|
|
API 5L X56 Pipe Wall Thickness / Schedule
|
: |
SCH-20, SCH-40, SCH-STD, SCH-XS, SCH-80, SCH-100, SCH-120, SCH-160, SCH-XXS, HEAVY THICKNESS
|
|
API 5L X56 Pipe Pipe Length
|
: |
SRL (Single Random
Length), DRL (Double Random Length), 20Ft (6Mtr), 40Ft (12Mtr),
Cut Length
|
|
API 5L X56 Pipe Pipe Ends
|
: |
Plain, Bevel,
Screwed, Threaded
|
|
API 5L X56 Pipe Coating
Finish Types
|
: |
Bare, Oiled, Mill
Varnish, Galvanized, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating
and Tape Wrap End
|
|
API 5L X56 Pipe
Packing
|
: |
Steel Bundle,

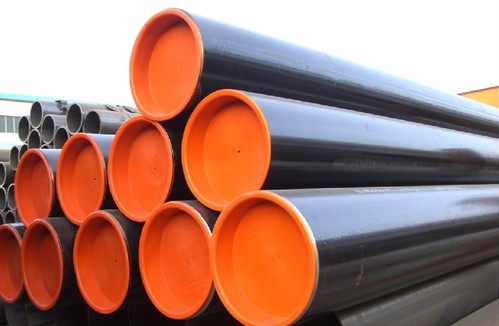

Plastic Caps on both ends, Woven bag, Wooden Box or as per clients’ needs
|
|
API 5L X56 Pipe Origin
|
:
|
Indian Origin,
Japanese Origin, Korean Origin, European Origin, US Origin, Ukraine Origin,
Russian Origin
|
API 5L X52 Steel Pipe Price List :-
|
API 5L X56 Steel Pipe
Price
|
Origin
|
Price in INR
(INR/Ton)
|
Price in USD(USD/Ton)
|
|
API 5L X56 Steel Pipe
Price in India
|
Indian
|
Rs.90,000 - Rs.100,000
|
$1200 - $1350
|
|
API 5L X56 Steel Pipe
Price in Korea
|
Korean
|
Rs.100,000 - Rs.110,000
|
$1350 - $1500
|
|
API 5L X56 Steel Pipe
Price in Japan
|
Japanese
|
Rs.120,000 - Rs.125,000
|
$1550 - $1650
|
|
API 5L X56 Steel Pipe
Price in Europe
|
European
|
Rs.125,000 - Rs.135,000
|
$1650 - $1800
|
|
API 5L X56 Steel Pipe
Price in USA
|
USA
|
Rs.125,000 - Rs.135,000
|
$1650 - $1800
|
API 5L X56 PSL-1 Pipe Chemical Composition :-
| Steel Grade | Mass fraction, % based on heat and product analyses a,g | ||||||
| C | Mn | P | S | V | Nb | Ti | |
| max b | max b | max | max | max | max | max | |
| Seamless Pipe | |||||||
| X56 / L390 | 0.28 | 1.4 | 0.3 | 0.3 | d | d | d |
| Welded Pipe | |||||||
| X56 / L390 | 0.26 | 1.4 | 0.3 | 0.3 | d | d | d |
API 5L X56 PSL-2 Pipe Chemical Composition :-
| Steel Grade | Mass fraction, % based on heat and product analyses | Carbon Equiv a | |||||||||
| C | Si | Mn | P | S | V | Nb | Ti | Other | CE IIW | CE Pcm | |
| max b | max | max b | max | max | max | max | max | max | max | ||
| Seamless and Welded Pipe | |||||||||||
| X56N / L390N | 0.24 | 0.45 | 1.4 | 0.025 | 0.015 | 0.1 | 0.05 | 0.04 | d,e,l | 0.043 | 0.25 |
| X56Q / L390Q | 0.18 | 0.45 | 1.5 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e,l | 0.043 | 0.25 |
| Welded Pipe | |||||||||||
| X56M / L390M | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | d | d | d | e,l | 0.043 | 0.25 |
API 5L X56 PSL-1 Pipe Mechanical Properties :-
| Pipe Grade | Tensile Properties - Pipe Body of SMLS and Welded Pipes PSL 1 | Seam of Welded Pipe | ||
| Yield Strength a | Tensile Strength a | Elongation | Tensile Strength b | |
| Rt0,5 MPa (psi) Min | Rm MPa (psi) Min | (in 2in Af % min) | Rm MPa (psi) Min | |
| X56 / L390 | 390 (56,600) | 490 (71,100) | c | 490 (71,100) |
API 5L X56 PSL-2 Pipe Mechanical Properties :-
| Pipe Grade | Tensile Properties - Pipe Body of SMLS and Welded Pipes PSL 2 | Seam of Welded Pipe | |||||
| Yield Strength a | Tensile Strength a | Ratio a,c | Elongation (in 2in) | Tensile Strength d | |||
| Rt0,5 MPa (psi) | Rm MPa (psi) | R10,5IRm | Af % | Rm MPa (psi) | |||
| Minimum | Maximum | Minimum | Maximum | Maximum | Minimum | Minimum | |
| X56N / L390N | 390 (56,600) | 545 (79,000) | 490 (71,100) | 760 (110,200) | 0.93 | f | 490 (71,100) |
| X56Q / L390Q | |||||||
| X56M / L390M | |||||||
API 5L X56 Line Pipe Test :-
- Flattening Test
- Hydrostatic Test
- Bend test
- Ultrasonic Test
- CVN impact test for PSL2 pipe (including pipe body tests, pipe weld and HAZ tests for SEAM Pipes)
- DWT test for PSL2 welded pipe
API 5L X56 Steel Pipe Certification and Traceability :-
API 5L X56 Pipes will be supplied with a 3.1/3.2 certificate according to EN 10204, endorsed by recognized and independent inspection agency. Mill TC EN 10204 3.1/3.2, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, , NABL Approved Lab, Chemical and Mechanical Reports.
API 5L X56 Line Pipe Application :-
API 5L X56 high yield carbon steel pipe is commonly known for transporting water, oil, and gas
We can help supply all of the High Yield Seamless API 5L line pipe supplies that your company needs for use in a wide range of industries.
Some of the common industries we serve include:
-
Oil & Gas
-
Chemical
-
Infrastructure
-
Oil and Gas Pipeline
-
Natural Gas
-
Water
-
Fabrication
-
Water and Sewage Pipeline
-
Petroleum
-
Refineries
-
Construction
-
Mineral Slurry Pipeline
