BUTTWELD PIPE FITINGS
Multi Metals (India) maintains an inventory of standard and special grades of butt weld fittings to meet your project needs quickly and reliably. No matter what industry you are in, Multi Metals (India) can provide the specifications you need for your piping systems, including ASTM, ASME, API, UNS, SB, DIN, and JIS.
What is a Butt Weld Fitting? :-
A butt weld fitting is a part of a piping system used for changing the direction or diameter of the system. Common materials for butt weld fittings include carbon and stainless steel. These fittings are available in various shapes and sizes, and they are manufactured in accordance with ANSI, ASME, and ASTM.
Types of Butt Weld Fittings :-
Multi Metals (India) supplies various types of butt weld fittings to meet your project needs. Some of the common types of butt weld fittings in our inventory include:
- Elbows
- Tees
- Reducers
- Caps
- Stub Ends
- Crosses
- Laterals
- Olets
- Return Bends
SPECIFICATION :-
- Standard Grades: Carbon, Stainless, Chrome Moly, High Yield, Low Temperature
- Special Grades: Inconel, Incoloy, Hastelloy, Monel, Titanium
- Types:Elbows, Tees, Reducers, Caps, Stub Ends, Crosses, Laterals, Olets, Return Bends
- Specialty Items:3D & 5D Bends, Hot Induction Bends
- Sizes: Standard 1/2" to 48" (special order larger O.D. fittings)
- Wall Sizes: Schedule 20 thru XXH, and Special Wall Sizes
- Specialty Items: 3D & 5D Bends, Galvanizing, 100% X-ray Testing
- Specifications: Manufactured in accordance with ANSI / ASME
Common Materials for Butt Weld Fittings :-
| Carbon Steel | ASTM A234 WPB, WPC |
| Low Temp. Carbon Steel | ASTM A420 WPL6, WPL3 |
| Chrome Moly Alloy Steel | ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91 |
| Stainless Steel | ASTM A403 WP 304/304L, 316/316L, 304H, 316H, 309, 310S, 317L, 321/321H, 347/347H, 904L |
| Duplex Stainless Steel | ASTM A815 UNS No. S31803, S32205, S32550, S32750, S32760, DUPLEX 2205 / SUPER DUPLEX 2507 |
| High Yield Carbon Steel | ASTM A860 or MSS SP75 WPHY42, WPHY52, WPHY60, WPHY65, WPHY70, WPHY80 |
| Nickel Alloy Steel | ASTM B336 Alloy 20, 200, 201, 400, 600, 625, 800H/HT, 825, 254SMO, AL6XN, C276, C22, B3, HAST-X |

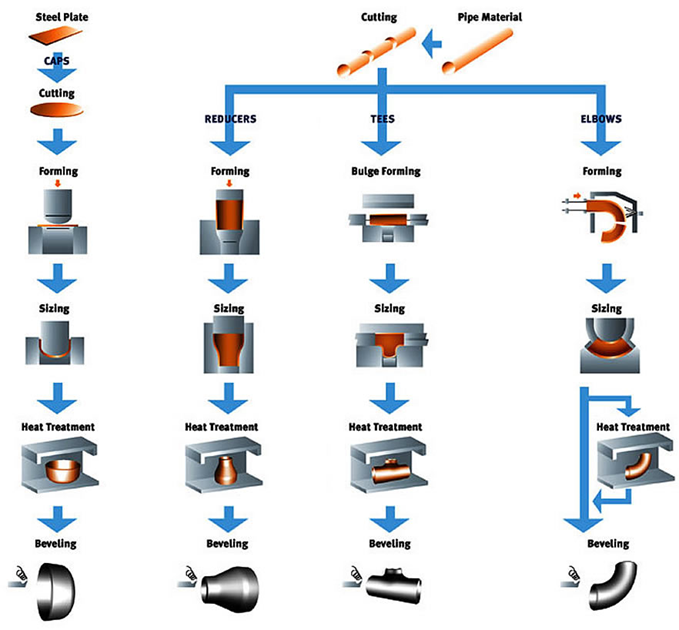

MANUFACTURING PROCESS :-
ISO 9001:2015 CERTIFIED
Multi Metals (India) are an ISO 9001:2015 Certified company engaged in manufacturing, supplying and exporting superior quality products like Pipes, Pipe Fittings & Flanges.
